    BS EN 856 4SH

    4SH

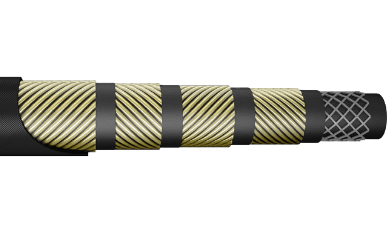

    BS EN 856 4SH Wire Spiral Hydraulic Hose




    Internal hose: Synthetic rubber, extruded whole without joints, of uniform thickness

    Reinforcement: 4 layers of steel wire spiral

    Covering: Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions

    Working Pressure: 165–445 Bar / 2393–6453 PSI

    Impulse times: ≥ 400,000 Times

    Media: Mineral and biological oils, glicol-water based, water, lubricants

    Cover Type: Wrapped

    Packing Type: Roll, Pallet, Reel

    Outward Appearance: Black


    SIZE I.D. O.D. WORKING PRESSURE BURST
    PRESSURE
    BEND RADIUS WEIGHT Length Per PCS
    DASH
    SIZE
    MM INCH MM MM BAR PSI BAR PSI MM KG/M METER
    -12 19.0 3/4"

    18.6-19.8

     31.4-33.0 420 6090 1680 24360 280 1.600 20/40
    -16 25.4 1" 25.0-26.4 37.5-39.9 380 5510 1520 22040 340 2.200 20/40
    -20  31.8  1.1/4" 31.4-33.0 43.9-47.1 325 4712.5 1300 18850 460 2.750 20/40
    -24 38.1 1.1/2" 37.7-39.3 51.9-55.1 290 4205 1160 16820 560 3.750 20/40
    -32  50.8 2"  50.4-52.0 66.5-69.7 250 3625 1000 14500 700 4.950 20/40
