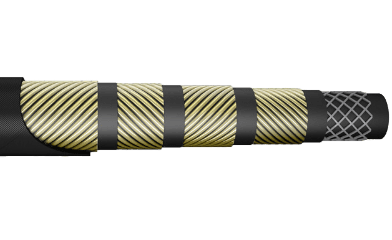

BS EN 856 4SP Wire Spiral Hydraulic Hose
Internal hose: Synthetic rubber, extruded whole without joints, of uniform thickness
Reinforcement: 4 layers of steel wire spiral
Covering: Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions
Working Pressure: 165–445 Bar / 2393–6453 PSI
Impulse times:≥ 400,000 Times
Media: Mineral and biological oils, glicol-water based, water, lubricants
Cover Type: Wrapped
Packing Type: Roll, Pallet, Reel
Outward Appearance: Black
|
SIZE
|
I.D. |
O.D. |
WORKING
PRESSURE
|
BURST
PRESSURE
|
BEND RADIUS |
WEIGHT |
Length Per PCS |
|
DASH
SIZE
|
MM |
INCH |
MM |
MM |
BAR |
PSI |
BAR |
PSI |
MM |
KG/M |
METER |
| -06 |
9.5 |
3/8" |
9.3-10.1 |
20.6-22.2 |
445 |
6452.5 |
1780 |
25810 |
180 |
0.700 |
20/40 |
| -08 |
12.7 |
1/2" |
12.3-13.5 |
23.8-25.4 |
415 |
6017.5 |
1660 |
24070 |
230 |
0.800 |
20/40 |
| -10 |
16.0 |
5/8" |
15.5-16.7 |
27.4-29.0 |
350 |
5075 |
1400 |
20300 |
250 |
0.975 |
20/40 |
| -12 |
19.0 |
3/4" |
18.6-19.8 |
31.4-33.0 |
350 |
5075 |
1400 |
20300 |
300 |
1.450 |
20/40 |
| -16 |
25.4 |
1" |
25.0-26.4 |
38.5-40.9 |
280 |
4060 |
1120 |
16240 |
340 |
2.050 |
20/40 |
| -20 |
31.8 |
1.1/4" |
31.4-33.0 |
49.2-52.4 |
210 |
3045 |
840 |
12180 |
460 |
3.060 |
20/40 |
| -24 |
38.1 |
1.1/2" |
37.7-39.3 |
55.6-58.8 |
185 |
2682.5 |
740 |
10730 |
560 |
3.650 |
20/40 |
| -32 |
50.8 |
2" |
50.4-52.0 |
68.2-71.4 |
165 |
2392.5 |
660 |
9570 |
660 |
4.850 |
20/40 |
