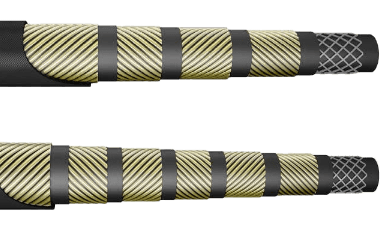

SAE J517 R15 Wire Spiral Hydraulic Hose
Internal hose: Synthetic rubber, extruded whole without joints, of uniform thickness
Reinforcement: 4 layers of high tensile steel wire spiral up to size 1'', 6 layers of spiral from size 1-1/4'' to 2"
Covering: Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions
Working Pressure: 420 Bar / 6090 PSI
Media: Mineral and biological oils, glicol-water based, water, lubricants
Cover Type: Wrapped
Packing Type: Roll, Pallet, Reel
Outward Appearance: Black
|
SIZE
|
I.D. |
O.D. |
WORKING PRESSURE
|
BURST
PRESSURE
|
BEND RADIUS |
WEIGHT |
Length Per PCS |
DASH
SIZE |
MM |
INCH |
MM |
MM |
BAR |
PSI |
BAR |
PSI |
MM |
KG/M |
METER |
| -6 |
9.3 |
3/8" |
9.3-10.1 |
23.3MAX |
420 |
6090 |
1680 |
24360 |
150 |
0.800 |
20/40 |
| -8 |
12.3 |
1/2" |
12.3-13.5 |
24.0MAX |
420 |
6090 |
1680 |
24360 |
200 |
0.900 |
20/40 |
| -12 |
19.0 |
3/4" |
18.6-19.8 |
32.9MAX |
420 |
6090 |
1680 |
24360 |
265 |
1.600 |
20/40 |
| -16 |
25.4 |
1" |
25.0-26.4 |
38.9MAX |
420 |
6090 |
1680 |
24360 |
330 |
2.250 |
20/40 |
| -20 |
31.8 |
1.1/4" |
31.4-33.0 |
48.4MAX |
420 |
6090 |
1680 |
24360 |
445 |
3.950 |
20/40 |
| -24 |
38.1 |
1.1/2" |
37.7-39.3 |
59.6MAX |
420 |
6090 |
1680 |
24360 |
530 |
5.250 |
20/40 |
| -32 |
50.8 |
2" |
37.7-39.3 |
/ |
420 |
6090 |
1680 |
24360 |
/ |
/ |
20/40 |
