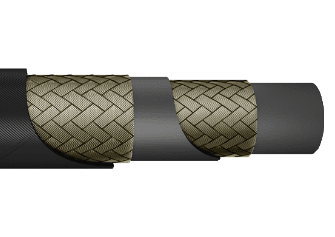

SAE J517 R19 Wire Braided Hydraulic Hose
Internal hose: Synthetic rubber, extruded whole without joints, of uniform thickness
Reinforcement: 2 layers of steel wire braid
Covering: Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions
Working Pressure: 125–280 Bar / 1812.5–4060 PSI
Impulse times: ≥ 200,000 Times
Media: Mineral and biological oils, glicol-water based, water, lubricants
| SIZE |
I.D. |
O.D. |
WORKING
PRESSURE
|
BURST
PRESSURE
|
BEND RADIUS |
WEIGHT |
Length Per PCS |
DASH
SIZE |
MM
|
INCH |
MM |
MM |
BAR |
PSI |
BAR |
PSI |
MM |
KG/M |
METER
|
| -04 |
6.4 |
1/4" |
6.2-7.0 |
14.4MAX |
280 |
4060 |
1120 |
16240 |
100 |
0.290 |
50/100 |
| -05 |
8.0 |
5/16" |
7.7-8.5 |
16.3MAX |
280 |
4060 |
1120 |
16240 |
115 |
0.330 |
50/100 |
| -06 |
9.5 |
3/8" |
9.3-10.1 |
18.0MAX |
280 |
4060 |
1120 |
16240 |
125 |
0.420 |
50/100 |
| -08 |
12.7 |
1/2" |
12.3-13.5 |
22.6MAX |
280 |
4060 |
1120 |
16240 |
180 |
0.550 |
50/100 |
| -10 |
16.0 |
5/8" |
15.5-16.7 |
27.5MAX |
280 |
4060 |
1120 |
16240 |
205 |
0.650 |
50/100 |
| -12 |
19.0 |
3/4" |
18.6-19.8 |
32.5MAX |
280 |
4060 |
1120 |
16240 |
240 |
0.790 |
50/100 |
| -16 |
25.0 |
1" |
25.0-26.4 |
39.4MAX |
280 |
4060 |
1120 |
16240 |
300 |
1.180 |
50/100 |
