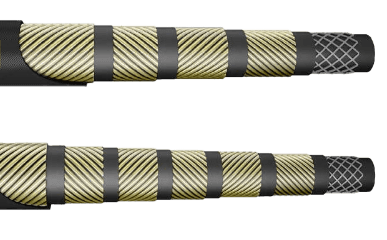

SAE J517 R13 Wire Spiral Hydraulic Hose
Internal hose: Synthetic rubber, extruded whole without joints, of uniform thickness
Reinforcement: 4 layers of high tensile steel wire spiral up to size 1", 6 layers of spiral from size 1-1/4" to 2"
Covering: Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions
Working Pressure: 350 Bar / 5075 PSI
Impulse times: ≥ 500,000 Times
Media: Hydraulic fluids petroleum based (mineral oils), glicol-water based, water, lubricants
|
SIZE
|
I.D. |
O.D. |
WORKING
PRESSURE
|
BURST
PRESSURE
|
BEND RADIUS |
WEIGHT |
Length Per PCS |
|
DASH
SIZE
|
MM |
INCH |
MM |
MM |
BAR |
PSI |
BAR |
PSI |
MM |
KG/M
|
METER |
| -12 |
19.0 |
3/4" |
18.6-19.8 |
31.0-33.2 |
350 |
5075 |
1400 |
20300 |
240 |
1.450 |
20/40 |
| -16 |
25.4 |
1" |
25.0-26.4 |
37.6-39.8 |
350 |
5075 |
1400 |
20300 |
300 |
2.050 |
20/40 |
| -20 |
31.8 |
1.1/4" |
31.4-33.0 |
48.3-51.3 |
350 |
5075 |
1400 |
20300 |
420 |
3.060 |
20/40 |
| -24 |
38.1 |
1.1/2" |
37.7-39.3 |
55.8-58.8 |
350 |
5075 |
1400 |
20300 |
500 |
3.650 |
20/40 |
| -32 |
50.8 |
2"
|
50.4-52.0 |
69.5-72.7 |
350 |
5075 |
1400 |
20300 |
640 |
4.85 |
20/40 |
