    SPARY HOSE

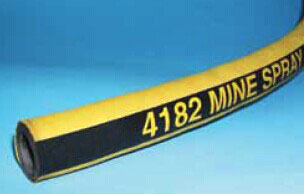

    SPARY HOSE 4182



    Part I.D. 　 O.D 　 Rein. Max W.P. 　 Weight 　 Min.Bend Rad
    Number in. mm. in. mm. Plies PSI BAR ib./ft KG/m in. mm
    4182 3/4 19.05 1.22 30.99 2 1000 68.95 0.60 0.89 8.30 210.00
    1 25.40 1.49 37.85 2 1000 68.95 0.80 1.19 11.00 280.00
    1-1/4 31.75 1.81 45.97 2 1000 68.95 1.05 1.56 14.00 355.00
    1-1/2 38.10 2.04 51.82 2 1000 68.95 1.24 1.85 16.50 420.00
    2 50.80 2.60 66.04 2 1000 68.95 1.80 2.68 22.00 560.00
    4182 3/4 19.05 1.22 30.99 2 1000 68.95 0.60 0.89 8.30 210.00
    1 25.40 1.49 37.85 2 1000 68.95 0.80 1.19 11.00 280.00
    1-1/4 31.75 1.81 45.97 2 1000 68.95 1.05 1.56 14.00 355.00
    1-1/2 38.10 2.04 51.82 2 1000 68.95 1.24 1.85 16.50 420.00
    2 50.80 2.60 66.04 2 1000 68.95 1.80 2.68 22.00 560.00
    TUBE:SBR, smooth, black
    REINFORCEMENT:Two steel wire plies
    COVER: Neoprene, fabric impression, pin-pricked, yellow
    BRANDING:None
    TEMPERATURE RANGE: 0°F(-18°C)to+200°F(+93°C)
    FEATURES: Visible yellow color, flame retardant
    APPLICATION: For dust control in underground water spray operations. STANDARD LENGTHS: All sizes, 100 ft.;6” and 8”,20 ft
    VACUUM RATING: 50 and 100 ft.
