| Part |
I.D. |
O.D |
Rein. |
Max W.P. |
Weight |
Min.Bend Rad |
| Number |
in. |
mm. |
in. |
mm. |
Piles |
PSI |
BAR |
ib./ft |
KG/m |
in. |
mm |
| 4450 |
1 |
25.40 |
1.38 |
35.00 |
2 |
150 |
10.34 |
0.49 |
0.73 |
6.00 |
152.40 |
| 1-1/4 |
31.75 |
1.70 |
43.18 |
2 |
150 |
10.34 |
0.75 |
1.12 |
6.00 |
152.40 |
| 1-1/2 |
38.10 |
1.96 |
49.78 |
2 |
150 |
10.34 |
0.80 |
1.19 |
6.50 |
165.10 |
| 2 |
50.80 |
2.49 |
63.25 |
2 |
150 |
10.34 |
1.11 |
1.65 |
8.00 |
203.20 |
| 2-1/2 |
63.50 |
2.99 |
75.95 |
2 |
150 |
10.34 |
1.75 |
2.6 |
10.00 |
254.00 |
| 3 |
76.20 |
3.50 |
88.90 |
2 |
150 |
10.34 |
2.24 |
3.33 |
12.00 |
304.80 |
| 4 |
101.60 |
4.53 |
115.06 |
2 |
150 |
10.34 |
2.79 |
4.15 |
18.00 |
457.20 |
| 5 |
127.00 |
5.68 |
144.27 |
2 |
150 |
10.34 |
3.25 |
4.84 |
26.00 |
660.40 |
| 6 |
152.40 |
6.54 |
166.12 |
2 |
150 |
10.34 |
5.75 |
8.56 |
31.00 |
787.40 |
| 4450 |
6 |
152.40 |
6.54 |
166.12 |
2 |
150 |
10.34 |
5.75 |
8.56 |
31.00 |
787.40 |
| 4450 |
6 |
152.40 |
6.54 |
166.12 |
2 |
150 |
10.34 |
5.75 |
8.56 |
31.00 |
787.40 |
| 8 |
203.20 |
8.79 |
223.27 |
2 |
100 |
6.89 |
6.59 |
9.81 |
42.00 |
1066.80 |
| 10 |
254.00 |
10.91 |
277.11 |
2 |
75 |
5.17 |
10.25 |
15.25 |
50.00 |
1270.00 |
| 12 |
304.80 |
12.91 |
327.91 |
2 |
75 |
5.17 |
13.50 |
20.09 |
60.00 |
1524.00 |
| 14 |
355.60 |
15.13 |
384.20 |
2 |
45 |
2.42 |
16.75 |
24.85 |
72.00 |
1828.80 |

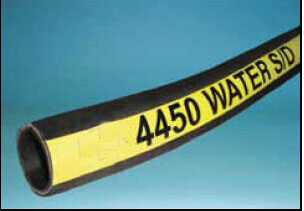

TUBE: EPDM blend smooth, black
REINFORCEMENT: Synthetic fabric with wire helix
COVER: EPDM blend, fabric impression
BRANDING: None
TEMPERATURE RANGE: -25°F(-32°C)to+185°F(+85°C)
FEATURES: Resistant to water-based ag fertilizer and salt water. Flexible and economical. Cover is weather and ozone resistant.
APPLICATION: For suction, discharge or gravity flow of water in construction, mining, oil exploration, agriculture and equipment rental.
STANDARD LENGTHS: 1-1/4” to 5” I.D.100 ft,;6”I.D. 20 ft.,50 ft., and 100 ft,; 10” and 12” I.D.,20 ft
VACUUM: Size 1-1//4” to 10”I.D., 28 in. Hg; Sizes 12” to 14 I.D.,25 in. Hg
