| Part |
I.D. |
Wall Thickness |
Rein. |
Max W.P. |
Weight |
Min.Bend Rad |
| Number |
in. |
mm. |
in. |
mm. |
Braid |
PSI |
BAR |
ib./ft |
KG/m |
in. |
mm |
| 4358 |
1-1/2 |
38.10 |
0.091 |
2.29 |
n/a |
250 |
17.24 |
0.26 |
0.39 |
n/a |
n/a |
| 2 |
50.80 |
0.109 |
2.77 |
n/a |
250 |
17.24 |
0.34 |
0.51 |
n/a |
n/a |
| 2-1/2 |
63.50 |
0.109 |
2.77 |
n/a |
250 |
17.24 |
0.47 |
0.70 |
n/a |
n/a |
| 3 |
76.20 |
0.114 |
2.90 |
n/a |
250 |
17.24 |
0.65 |
0.97 |
n/a |
n/a |
| 4 |
102.40 |
0.114 |
2.90 |
n/a |
250 |
17.24 |
0.83 |
1.24 |
n/a |
n/a |
| Feb-85 |
1-1/2 |
38.10 |
0.091 |
2.29 |
n/a |
250 |
17.24 |
0.26 |
0.39 |
n/a |
n/a |
| 2 |
50.80 |
0.109 |
2.77 |
n/a |
250 |
17.24 |
0.34 |
0.51 |
n/a |
n/a |
| 2-1/2 |
63.50 |
0.109 |
2.77 |
n/a |
250 |
17.24 |
0.47 |
0.70 |
n/a |
n/a |
| 3 |
76.20 |
0.114 |
2.90 |
n/a |
250 |
17.24 |
0.65 |
0.97 |
n/a |
n/a |
| 4 |
102.40 |
0.114 |
2.90 |
n/a |
250 |
17.24 |
0.83 |
1.24 |
n/a |
n/a |
TUBE:NBR/PVC
REINFORCEMENT:N/A

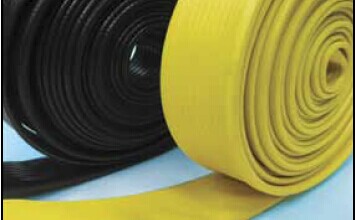

COVER:NBR/PVC,ribbed, yellow or black
BRANDING:None
TEMPERATURE RANGE: -20°F(-29°C)to+210°F(+99°C)
FEATURES:Oil resistant tube and cover.resists heat and cold,abrashion,ozone and UV.This is lightweight and flexible.
APPLICATION:For use in industrial washdown,irrigation,general dewatering,pump discharge and drainage.
STANDARD LENGTHS: 100 ft, or 50 ft. longer lengths
Available upon request
