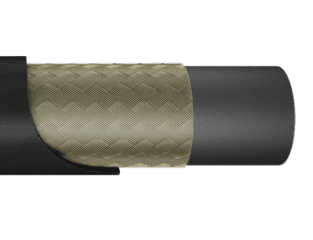

SAE J517 R1AT/R1A Wire Braided Hydraulic Hose
Internal hose: Synthetic rubber, extruded whole without joints, of uniform thickness
Reinforcement: Braided steel wire
Covering: Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions
Impulse times: ≥ 150,000 Times
Media: Mineral and biological oils, glicol-water based, water, lubricants
| SIZE |
I.D. |
O.D. |
WORKING
PRESSURE |
BURST
PRESSURE |
BEND RADIUS |
WEIGHT |
Length Per PCS |
DASH
SIZE |
MM |
INCH |
MM |
MM |
BAR |
PSI |
BAR |
PSI |
MM |
KG/M |
METER |
| -03 |
4.8 |
3/16" |
4.6-5.4 |
12.5MAX |
250 |
3625 |
1000 |
14500 |
90 |
0.240 |
50/100 |
| -04 |
6.4 |
1/4" |
6.2-7.0 |
14.1MAX |
225 |
3262.5 |
900 |
13050 |
100 |
0.255 |
50/100 |
| -05 |
8.0 |
5/16" |
7.7-8.5 |
15.7MAX |
215 |
3117.5 |
860 |
12470 |
115 |
0.304 |
50/100 |
| -06 |
9.5 |
3/8" |
9.3-10.1 |
18.1MAX |
180 |
2610 |
720 |
10440 |
130 |
0.390 |
50/100 |
| -08 |
12.7 |
1/2" |
12.3-13.5 |
21.4MAX |
160 |
2320 |
640 |
9280 |
180 |
0.472 |
50/100 |
| -10 |
16.0 |
5/8" |
15.5-16.7 |
24.5MAX |
130 |
1885 |
520 |
7540 |
200 |
0.581 |
50/100 |
| -12 |
19.0 |
3/4" |
18.6-19.8 |
28.5MAX |
105 |
1522.5 |
420 |
6090 |
240 |
0.690 |
50/100 |
| -16 |
25.4 |
1" |
25.0-26.4 |
36.6MAX |
88 |
1276 |
352 |
5104 |
300 |
0.830 |
50/100 |
| -20 |
31.8 |
1.1/4" |
31.4-33.0 |
44.8MAX |
63 |
913.5 |
252 |
3654 |
420 |
1.325 |
20/40 |
| -24 |
38.1 |
1.1/2" |
37.7-39.3 |
52.1MAX |
50 |
725 |
200 |
2900 |
500 |
1.500 |
20/40 |
| -32 |
50.8 |
2" |
50.4-52.0 |
65.5MAX |
40 |
580 |
160 |
2320 |
630 |
1.875 |
20/40 |
